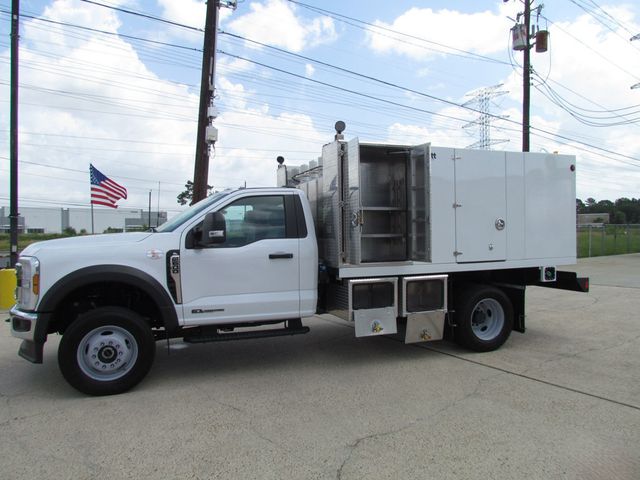

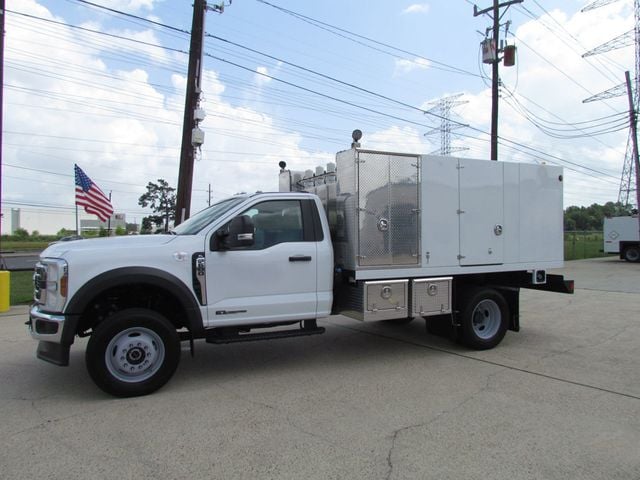

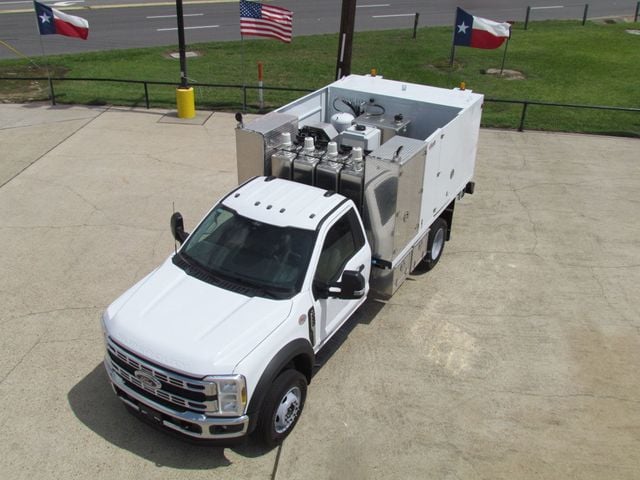

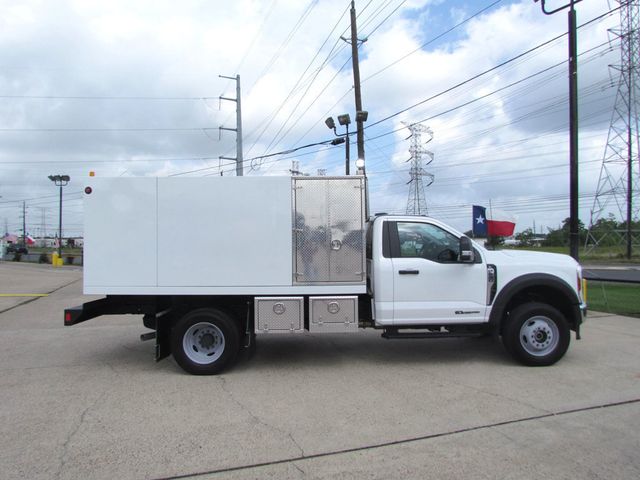

2024 Ford F600

Vehicle Overview

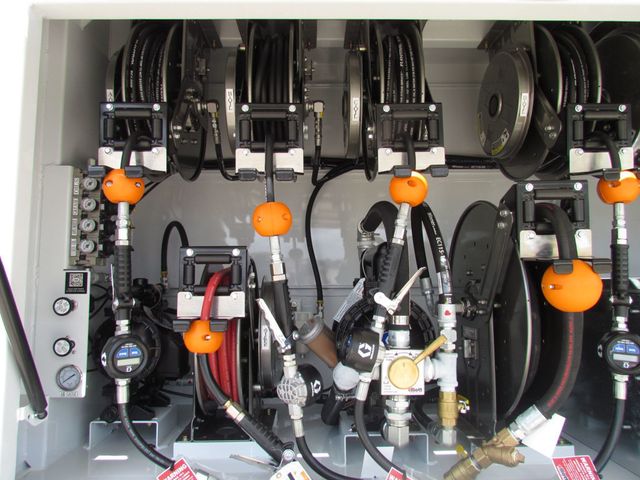

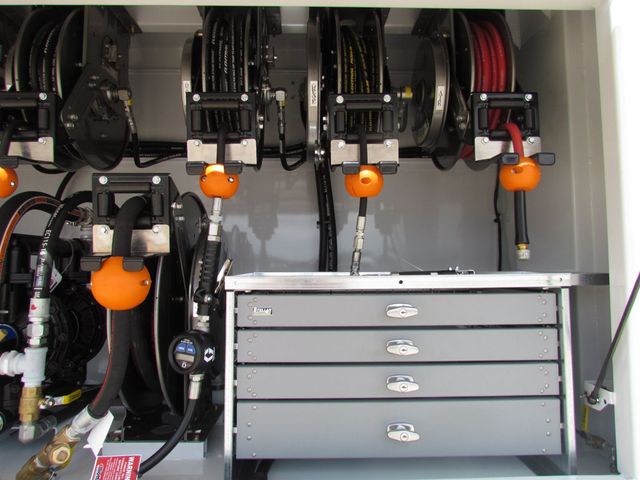

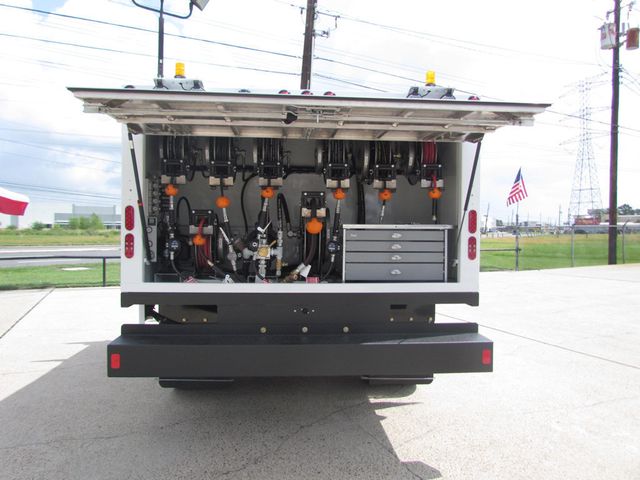

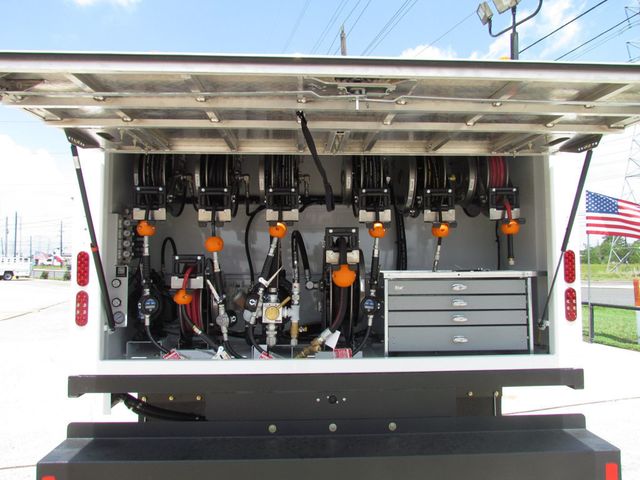

REEL CABINET - HOSE REEL AND EQUIPMENT ENCLOSURE
Formed steel construction with integral drip ledge
Heavy duty, multi-level, with bottom drain plug
Aluminum, flip-up style door with gas charged assist springs, stainless
(12) VDC LED strip lights installed in hose reel area

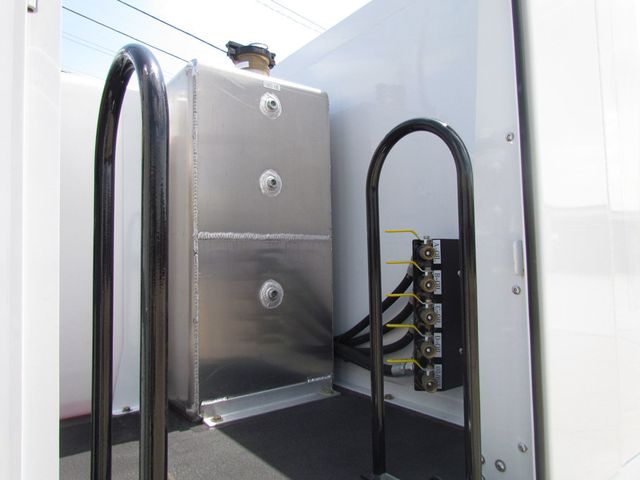

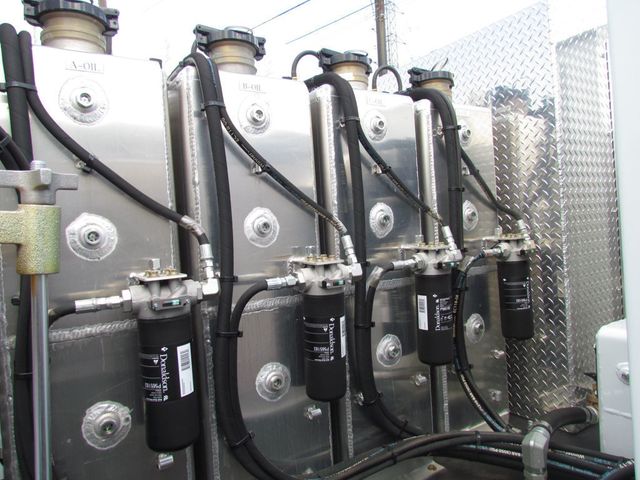

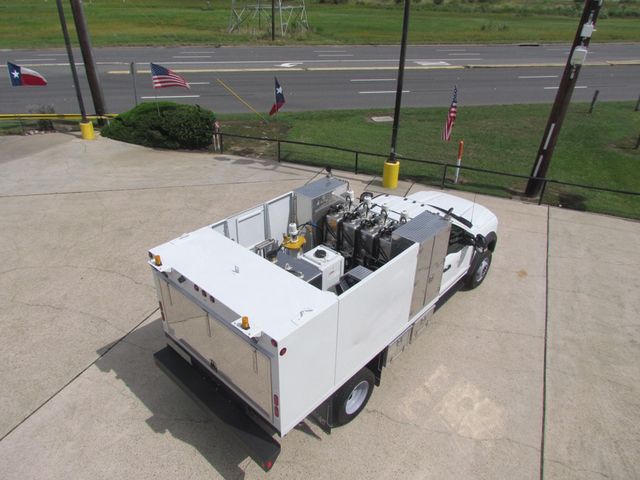

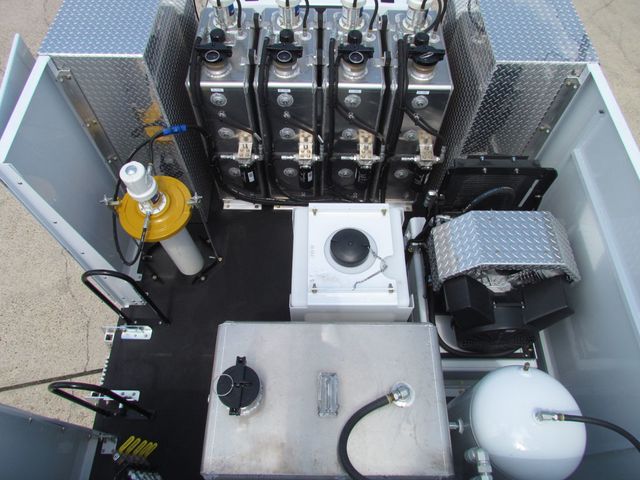

PRODUCT TANKS, RECTANGULAR CONSTRUCTION
(1) each, (120) U.S. gallon used oil tank
(4) each, (60) U.S. gallon oil tanks
(1) each, (55) U.S. gallon "A/F" tank
(1) each, drum nest and hold-down kit for a (120) lb. commercial drum

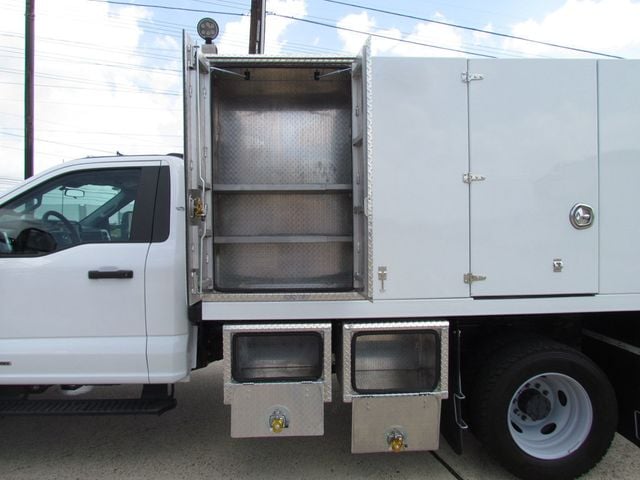

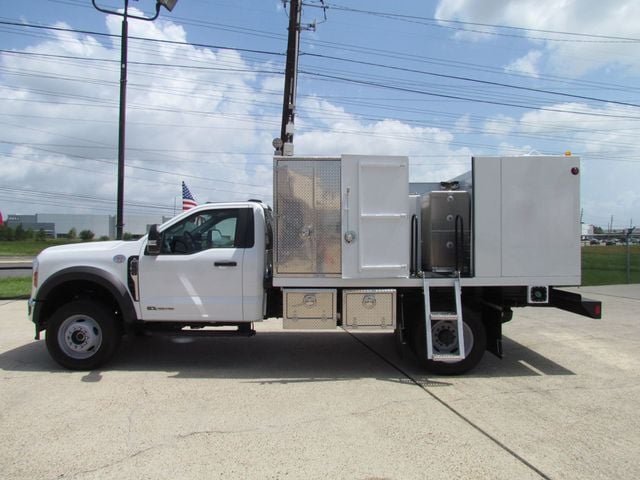

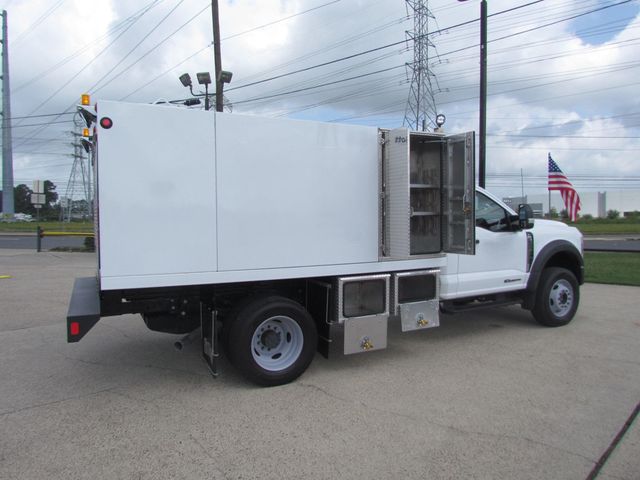

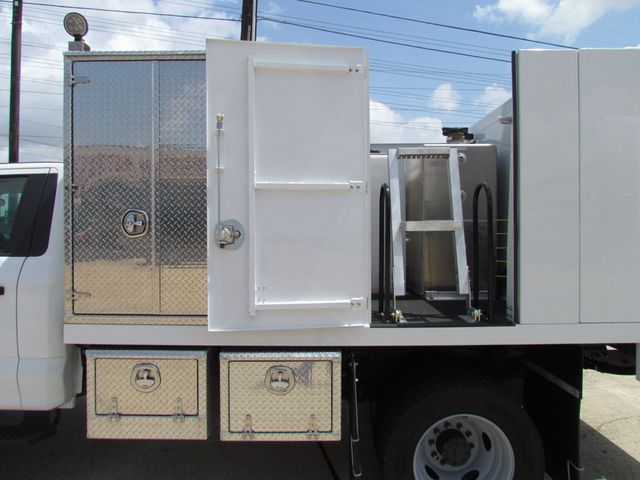

STORAGE CABINETS
Aluminum tread brite welded construction equipped with stainless steel
bolt-on hinges, multi-point latch, (keyed alike), and automotive weather seal
36"L x 18"D x 54"H above deck cabinet with adjustable shelving
(1) 24"L x 26"D x 18"H below deck cabinet
(1) 24"L x 26"D x 18"H below deck used filter cabinet with raised screen/drain
36"L x 18"D x 54"H above deck cabinet with adjustable shelving
(2) 24"L x 26"D x 18"H below deck cabinet

HYDRAULIC SYSTEM
Open loop, open center hydraulic system
Single section gear pump
Transmission mounted power take-off (air or electric shift)
(10) micron return line filter with indicator gauge
Heat exchanger with (12) VDC electric fan

AIR SUPPLY SYSTEM

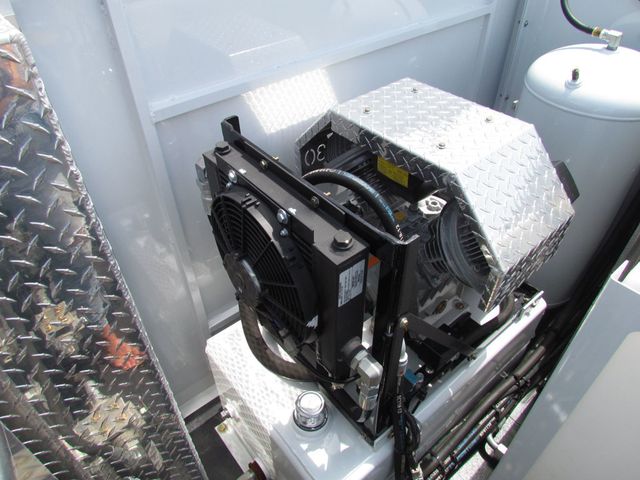

Hydraulic driven EM-30 piston compressor (30 CFM @ 100 PSI)
Hannay spring rewind hose reel with (50) feet of (1/2) inch air hose

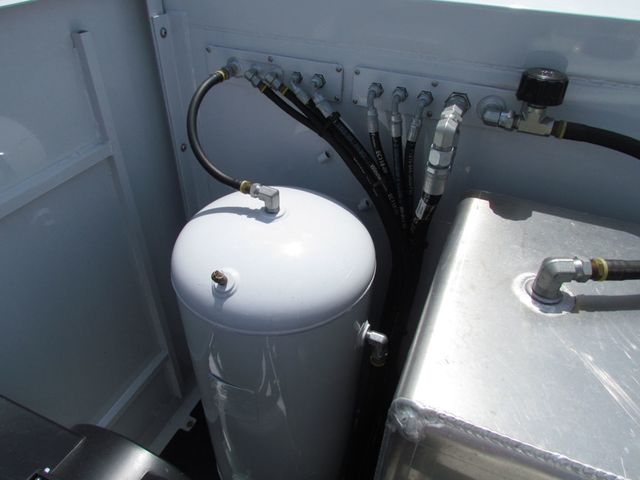

ASME certified air receiver with air filter, lubricator, and regulator(s)


USED OIL SYSTEM
Air operated (1.50) inch Graco diaphragm pump

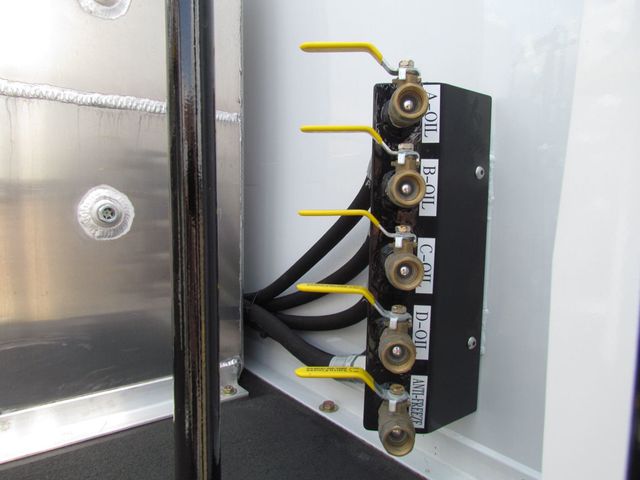

(4) way valve allows suction and discharge from the on-board tank
(1) each, "Y" type suction strainer
The used filter cabinet drain port is plumbed into the used oil system.
Hannay spring rewind hose reel with (30) feet of (1.00) inch hose & ball valve

ANTI-FREEZE SYSTEM
Air operated (1.00) inch diaphragm pump
Hannay spring rewind hose reel with (50) feet of (1/2) inch hose
Graco 200 series dispense valve

GREASE SYSTEM, HIGH PRESSURE
Air operated (50:1) ratio Graco pump
Hannay spring rewind hose reel with (50) feet of (3/8) inch hose
Graco high pressure dispense valve

CHASSIS SPECS:

2024 Ford F600 RC 4x4

Engine: 6.7L Power Stroke

Trans:  TorqShift 10-Speed Automatic

GVWR: 22,000 lbs.

Front Axle: 7,000 lbs.

Rear Axle: 15.500 lbs.

Wheelbase: 169"

CA: 84"

Tires: 245/70Rx19.5
