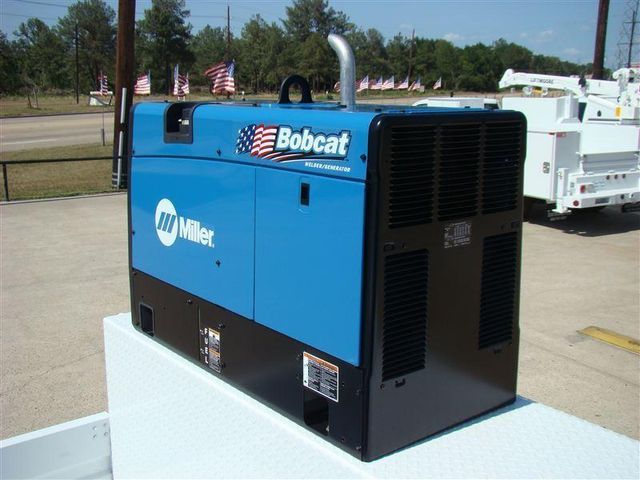

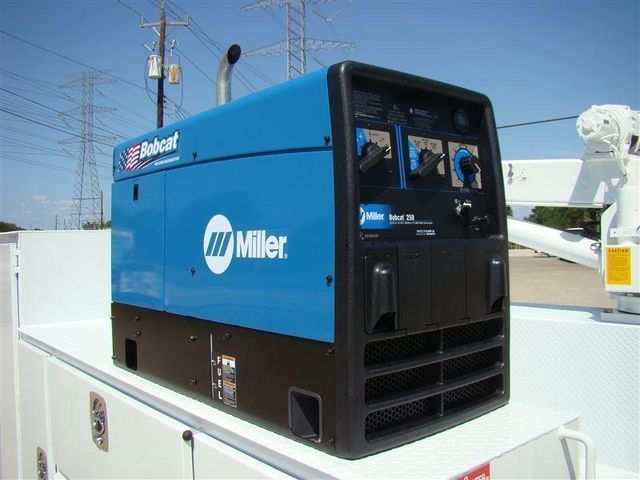

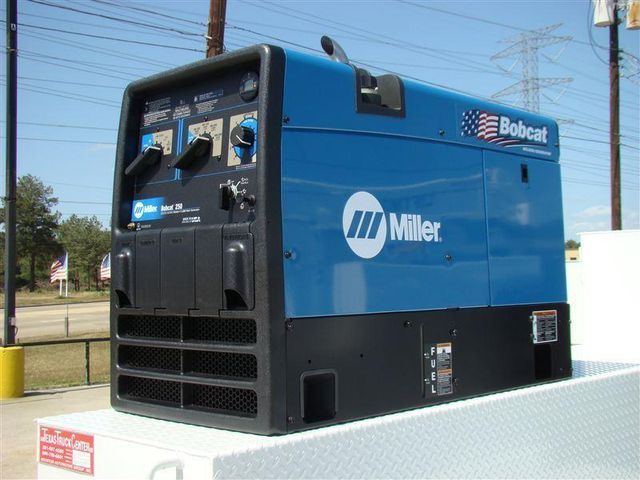

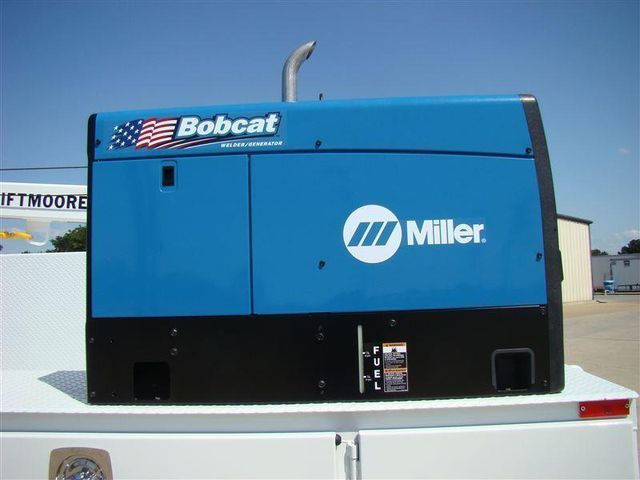

0 Welder - Miller Bobcat 250

Vehicle Overview

Miller Bobcat Welder,
Serial: MB070056H,
Model: Bobcat 250,

MIG (GMAW),
Stick (SMAW),
Flux Cored (FCAW),
AC TIG (AC GTAW),
DC TIG (DC GTAW),

Air Plasma Cutting and Gouging (PAC)
with Optional Spectrum Models,

Air Carbon Arc Cutting and Gouging (CAC-A) rated
3/16 in carbons, capable 1/4 in carbons),

Rated Output,
Stick/TIG; DC/AC: 250 Amps at 25 Volts, 100% Duty Cycle,
                  275 Amps at 25 Volts, 60% Duty Cycle,
                  EFI: 275 Amps at 25 Volts, 100% Duty Cycle,
Wire: 250 Amps at 28 Volts, 100% Duty Cycle,
          275 Amps at 25 Volts, 60% Duty Cycle

Welding Amperage Range,
40-275 Amps,
17-28 Volts,
Net Weight: 556 lb (252 kg),

Generator  Power 104DegF,
Accu-Rated Power,
11,000 Watts Peak, 9,500 Watts Continuous,
EFI: 12,000 Watts Peak, 10,500 Watts Continuous,

Engine,
Gas,
Kohler CH 23,23 HP at 3,600 RPM,
Subaru EH 65,23 HP at 3,600 RPM,
3 Year Mfg. Warranty,
Fuel Capacity
12 gal (45L),

Fuel Run Time Capacity,
-Welding with an 1/8 inch stick electrode, 20% Duty Cycle, exp hours of operation.
-Under a continuous 4,000 watt generator load, expect approximatye hours of run time.

 View Specs PDF Here: http://www.texastruckcenter.com/maintainer/Miller%20Bobcat%20250%20Welder.pdf
