2014 Air Compressor - Van Air RC40

- Hydraulic Compressor

/ MST

0 recently viewed this vehicle
0 recently saved this vehicle
Contact Us

About This Air Compressor

Download Window Sticker

2014 Air Compressor - Van Air RC40 - Hydraulic Compressor

Condition New
Model Code
Engine
Transmission Manual
Drivetrain
Exterior Color
White
Interior
White
Stock # RC40
VIN # RC40
Warranty Full Factory Warranty

Vehicle Overview

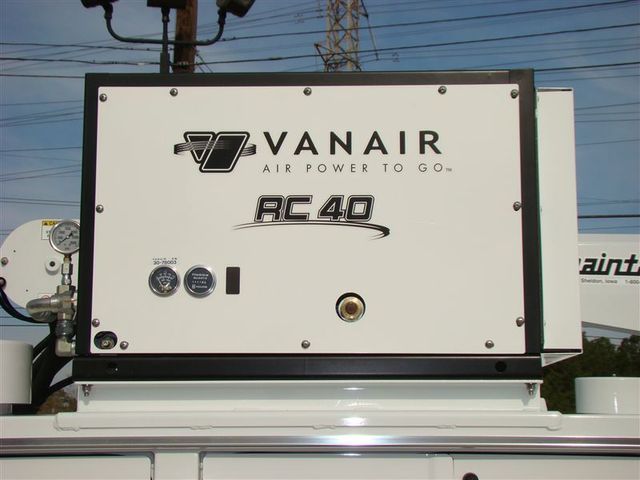

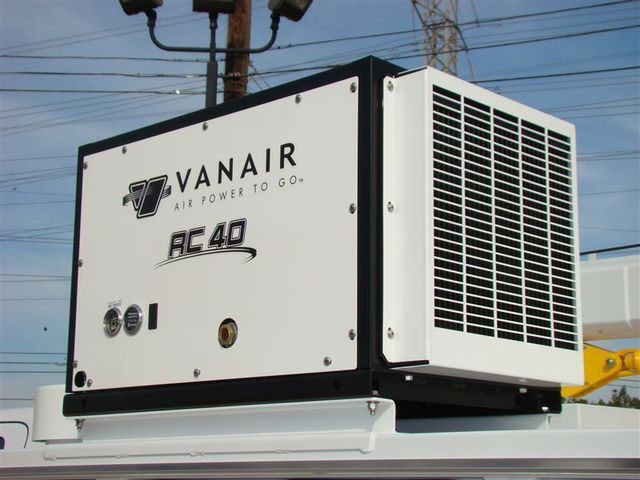

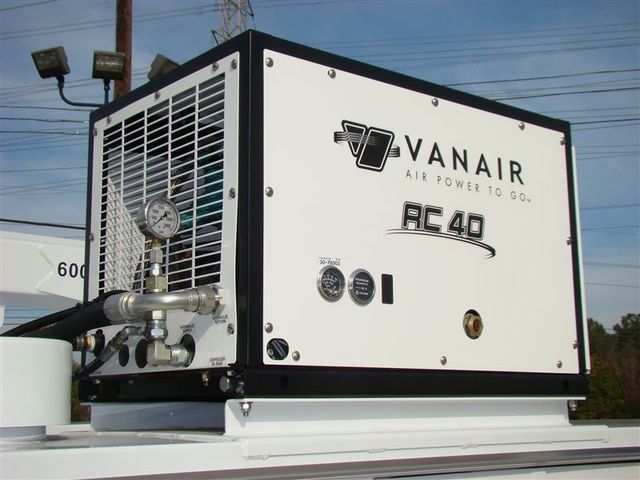

Van Air RC 40 Reciprocating Compressor - 30 to 40 CFM,
Serial: 30-73905,
Maximum Pressure: 100,
Compressor Input RPM: 820,

HYDRAULIC SYSTEM REQUIREMENTS
3000 psi rated hydraulic pump
Pressure relief set at 3200 psi
Hydraulic reservoir at 2.5 times the oil flow (recommended)
Dedicated gear pump
Additional oil cooler for high-ambient temperatures
When mounting compressor, allow for adequate ventilation

SPECIAL FEATURES
Compressor
Two-stage,four-cylinder reciprocating type
Air compressor and hydraulic hose access on both sides of canopy
Integral hydraulic oil cooler
V-Belts driven by hydraulic motor
Added features
Powder-coated, galvanneal sheetmetal enclosure
Rugged, cast-iron crankcase
Corrosion-resistant steel valves
Tapered roller-type main bearings
Balanced crankshaft
Weight-matched balanced pistons
High-flow valves
Lightweight connecting rods
Interstage cooling
Supply connections
Hydraulic oil in - 3/4" 37 degree JIC
Hydraulic oil out - 1" 37 degree JIC
Electrical 12-volt DC
Vibration isolation for compressor and drive system for quiet operation
Compressor Control System
Integral on-off manifold with solenoid diverter valve and hydraulic pressure relief valves
Safety Equipment
Air pressure-relief safety valve
Hydraulic oil pressure-relief valve

View PDF Here: http://www.texastruckcenter.com/maintainer/Van%20Air%20Compressor%20RC40.pdf
View Specs PDF Here: http://www.texastruckcenter.com/details3.php?stock_no=VAN%20AIR%2030-73905
