2025 Ford F600

Mechanics Service Truck 4x4

/ Stellar TMAX1-11 Mechanic Body / Stellar 8630 Crane

0 recently viewed this vehicle
0 recently saved this vehicle
Contact Us

About This Ford

Download Window Sticker

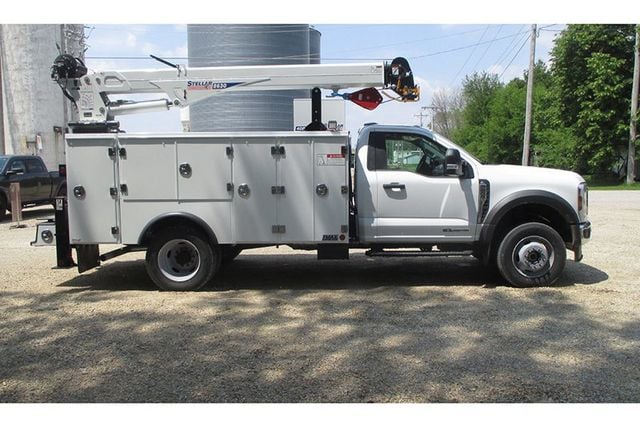

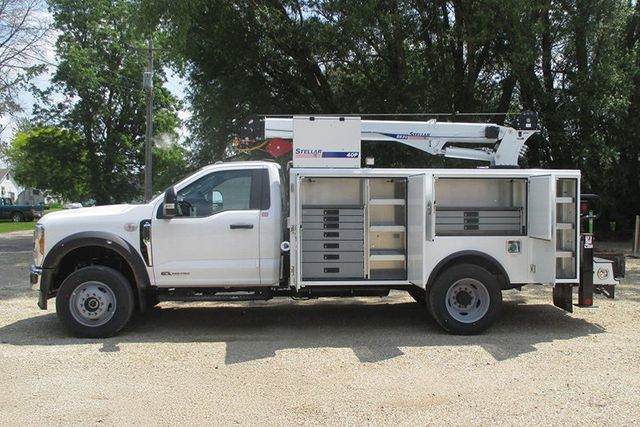

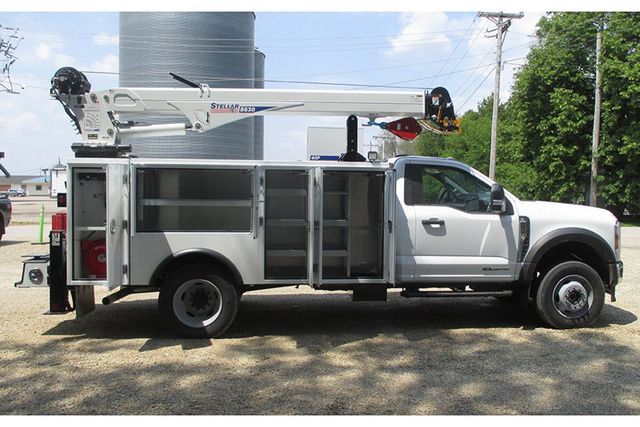

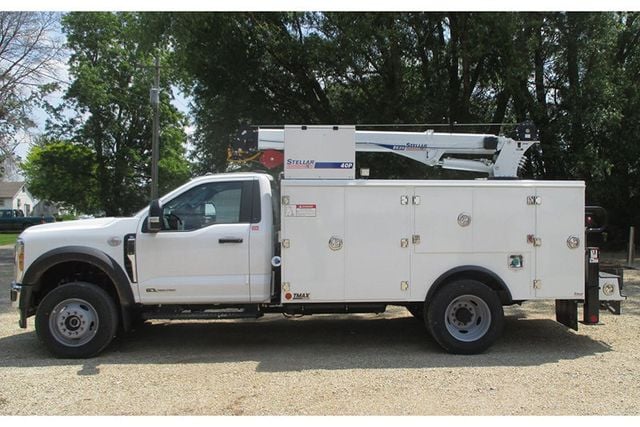

2025 Ford F600 Mechanics Service Truck 4x4

Condition New
Model Code
Engine
Transmission Automatic
Drivetrain Four Wheel Drive
Exterior Color
White
Interior
Stock # 9830Q
VIN # 9830
Warranty

Vehicle Overview

Several Work Ready Trucks Available and in Stock! Shipping offered Nationwide!



Stellar TMAX1-11 Mechanic Body:

11' Aluminum Body, Side Packs and Doors

All Compartments raised to 52"

Steel Crane Compartment

Torsion Box Understructure with Isolated Crane Compartment

All Compartments raised to 52"

Work Bench Bumper with Thru Compartment

8" Drop Well in CS1V for Oxy / Acet. Bottles



Stellar 8630 Hydraulic Crane:,

Crane Rating : 53,100 ft-lb,

Max Lifting Capacity: 8,600 lbs. @ 6' 2?,

Maximum Horizontal Reach: 29' 8? from CL of crane,

Maximum Vertical Lift: 31' 6? from crane base,

Boom Elevation: -10* to +80*,

CDTpro tm Control System w/Range Finder,



Stellar 40P Hydraulic Air Compressor:,

Output Capacity: 40 CFM @ 100 PSI,

Max. pressure: 150 PSI,

Cylinders: 2-cylinder, single-stage,

Electrical control: 12 VDC @ 20 amps,

25 gallon air tank kit (1 -10 gallon, 1-15 gallon),

FLR system installed - 1 outlet for air hose (filter, lubricator, regulator),



CHASSIS SPECS:,

2025 Ford F600 SD 4x4,

Engine: 6.7L Power Stroke Turbo Diesel,

Trans: 10 Speed, Automatic,

HP: 350,

GVWR: 22,000 lbs.,

Front Axle: 7,500 lbs.,

Rear Axle: 15,500 lbs.,

Wheelbase: 169",

CA: 84",

Ratio: 4.30,

Tires: 245/70R.195,


GM Manufactures Warranty:,
Basic: 36 Months / 36,000 Miles,
Powertrain: 60 Months / 60,000 Miles,
Corrosion: 60 Months / Unlimited,


Financing Information

Contact us today at 888-321-9546 for more information, or fill out our Online Credit Application to begin the pre-approval process today.

Payment Calculator

Estimated Monthly Payment:

$0.00

Title and other fees and incentives are not included in this calculation, which is an estimate only. Monthly payment estimates are for informational purpose and do not represent a financing offer from this dealership. Other taxes may apply.

Warranty Information

Contact Us at 888-321-9546

Texas Truck Center

10555 Cypress Creek Parkway
Houston, TX 77070
View Map & Get Directions

Call Us About This Vehicle: 888-321-9546

888-321-9546
Monday: 8 a.m. - 5:00 p.m.
Tuesday: 8 a.m. - 5:00 p.m.
Wednesday: 8 a.m. - 5:00 p.m.
Thursday: 8 a.m. - 5:00 p.m.
Friday: 8 a.m. -5:00 p.m.
Saturday: Closed
Sunday: Closed

Options & Features

Ext / Int Color
  • White with Interior
Luxury Features
  • Air Conditioning
  • Cruise Control
Power Equipment
  • Power Locks
  • Power Steering
  • Power Windows
Trans/Axles
  • Drive Axles: Single
  • Suspension: Spring
Other
  • Utility Truck - Service Truck
Interior
  • Clock
  • Tachometer
Audio / Video
  • AM/FM
  • Factory System
It is the customer’s sole responsibility to verify the existence and condition of any equipment listed. Neither the dealership nor eBizAutos is responsible for misprints on prices or equipment. It is the customer’s sole responsibility to verify the accuracy of the prices with the dealer, including the pricing for all added accessories.
