TMAX™ 1

Aluminum or Steel Mechanic Truck | Texas Truck Center

With extensive crane compatibility and customization options, the Stellar TMAX 1 mechanic truck covers a wide range of field service work. Aluminum construction resists corrosion through years of hard use, and a steel body is available for applications that call for it.

As an Authorized Stellar Industries Distributor, Texas Truck Center will help you configure the right chassis, body length, crane and accessories for your operation.

Get Quote View Inventory

Questions? Call Sales at 888-321-9546

Additional Information

Enhanced for Convenience and Performance

  • High-intensity taillights with integrated strobes and a cascading turn signal.

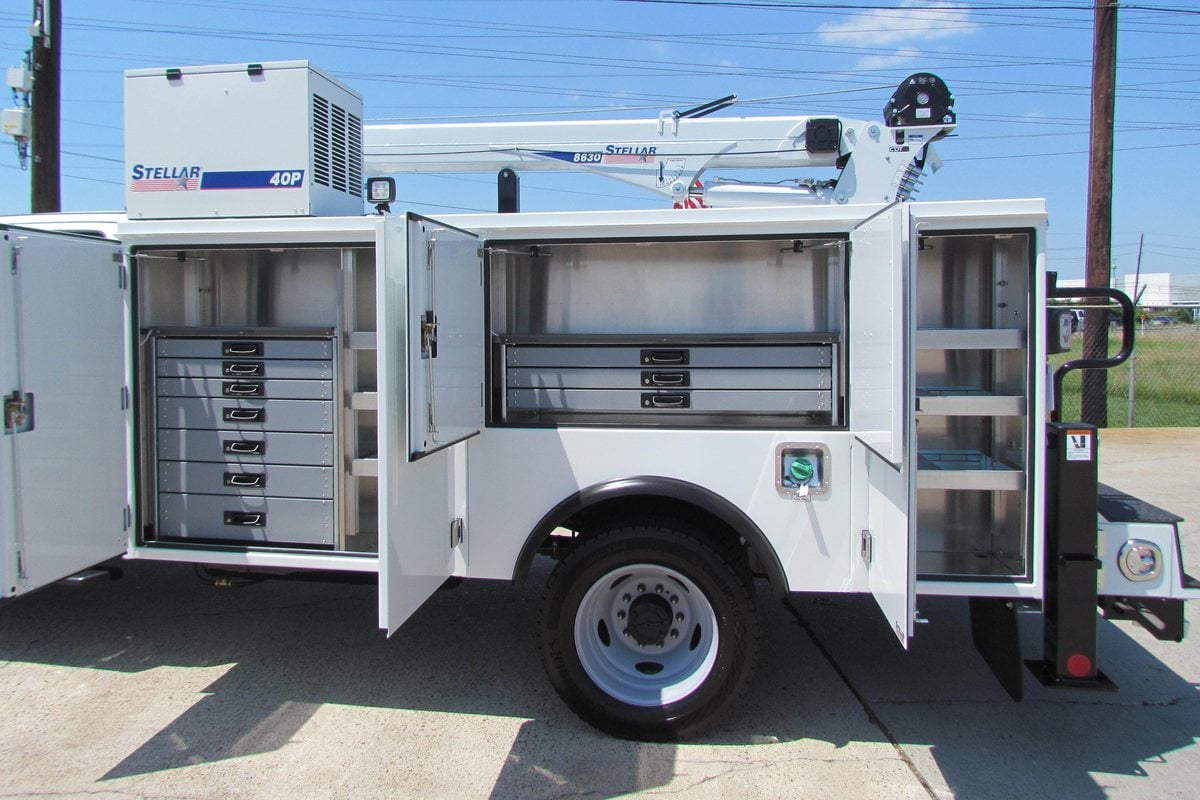

  • Mounting rails integrated within compartments allow for fully customizable configurations.
  • Ease of wiring access with added pre-drilled holes between compartments for seamless wiring installation.
  • Easily add a wide range of mechanic service truck accessories, like bale-handle drawer sets and bolt bins for better organization.
  • Hydraulic reservoir design features a top-mounted filter for easier maintenance.
  • Simplified back-end design minimizes welded holes on the truck body for improved performance.
  • Mudflaps positioned to wire guards to avoid interference with exhaust systems.

Proven Performance

  • Available in either 9', 11', or 13' bodies.
  • Stellar’s torq-isolator crane support design isolates the crane compartment from the rest of the side pack. Lifting stresses are transferred to the stabilizers and box-type subframe, not the compartment doors.
  • Aluminum extruded top with drill-free mounting rails make it easy to add a wide range of mechanic service truck accessories.
  • Aluminum sidepack and doors reduce weight and corrosion, allowing for more payload and longer life.

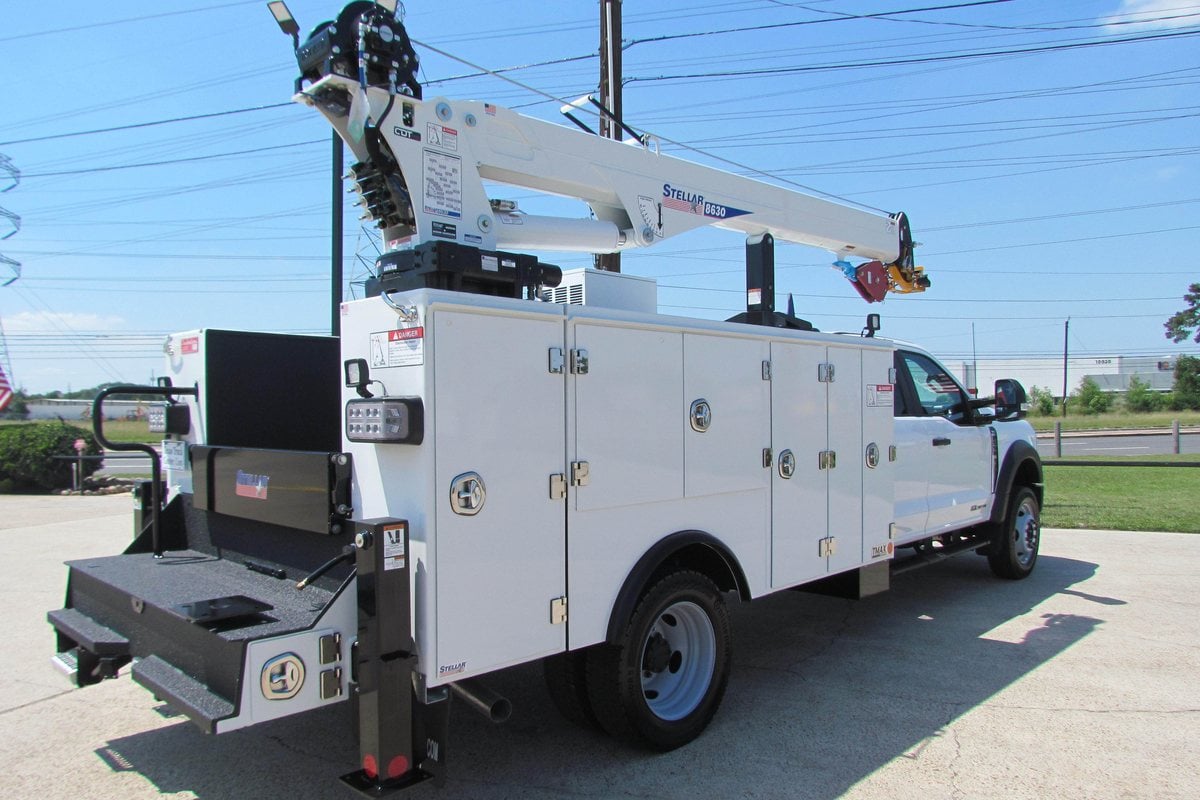

  • Bodies feature a 21" steel workbench bumper with an integrated full-width long bar storage compartment and vise mounts.
  • Roller-type boom support helps center the crane boom when stowing.
  • Stainless-steel billet-style hinges have hidden fasteners and a rugged 5/16" stainless-steel rod for years of heavy use.
  • Rotating master-lock system for security.
  • Exterior mounted light box provides easy mounting for work lights and other accessories while minimizing entry points into the body.
  • 3-point compression latches keep weather-stripping tight while allowing easy access.
  • Double-panel 1/8" aluminum tailgate with hinged arm brackets provides a stout working surface.
  • 250-lb capacity, adjustable divider shelves made of spangled galvanized steel.
  • Complete undercoating, with minimum of 6.5 mils of petroleum base material, provides extra protection from corrosion and road debris.

Models

  • TMAX 1-9
  • TMAX 1-11
  • TMAX 1-13

Works with CDTpro™ Control System

Several cranes compatible with the TMAX 1 feature the CDTpro Control System. Its industry-only Range Finder™ technology provides real-time max lifting capacity from any point as you walk around the crane.

Specifications

  TMAX 1-9 TMAX 1-11 TMAX 1-13
Applicable Chassis 16,000 – 22,900 GVWR
(19.5 tire size)		 16,000 – 22,900 GVWR
(19.5 tire size)		 22,000 – 22,900 GVWR
(19.5 tire size)
Body Height Aluminum:
  • All Raised 52" (132 cm)
  • All Raised 52" (132 cm) with 8" (20 cm) drop well in CS1V
Steel:
  • 44" (112 cm)
  • CS1V Raised to 60" (152 cm) remaining 44" (112 cm)
 Aluminum:
  • 44" (112 cm)
  • All Raised 52" (132 cm)
  • All Raised 52" (132 cm) with 8" (20 cm) drop well in CS1V
  • All Raised 60" (152 cm)
Steel:
  • 44" (112 cm)
  • CS1V Raised to 60" (152 cm) remaining 44" (112 cm)
  • All Raised 52" (132 cm)
  • All Raised 52" (132 cm) with 8" (20 cm) drop well in CS1V
 Aluminum:
  • All Raised 52" (132 cm) with 8" (20 cm) drop well in CS1V
Body Width 94" (239 cm) 94" (239 cm) 94" (239 cm)
Floor Width 50" (127 cm) 50" (127 cm) 50" (127 cm)
Compartment Depth 22" (56 cm) 22" (56 cm) 22" (56 cm)
Clear Cab to Axle 60" (152 cm) 84" (213 cm) 108" (274 cm)
Body Length 109" (277 cm) 133" (338 cm) 157" (399 cm)
Net Weight Aluminum: 2,718 – 2,728 lbs
(1,233 – 1,237 kg)
Steel: 3,149 – 3,222 lbs
(1,428 – 1,462 kg)		 Aluminum: 2,851 – 3,146 lbs
(1,293 – 1,427 kg)
Steel: 3,604 – 4,076 lbs
(1,635 – 1,849 kg)		 Aluminum: 3,330 lbs
(1,293 – 1,511 kg)

Compatible Cranes

Crane Rating Max. Reach Max. Capacity Control System
Electric Cranes
EC3200 11,500 ft-lb 15' (4.57 m) 3,200 lbs (1,451 kg) —
EC6000 38,000 ft-lb 21' (6.40 m) 6,000 lbs (2,722 kg) —
Electric-Hydraulic Cranes
3315 11,500 ft-lb 15' (4.57 m) 3,200 lbs (1,451 kg) CDT™
4421 16,000 ft-lb 21' (6.40 m) 4,000 lbs (1,810 kg) CDT™
5521 29,500 ft-lb 21' (6.40 m) 5,000 lbs (2,268 kg) CDT™
6521 35,000 ft-lb 21' (6.40 m) 6,000 lbs (2,722 kg) CDT™
Hydraulic Cranes
7621 44,840 ft-lb* 21' (6.40 m) 7,500 lbs (3,400 kg) CDTpro™
7630 44,840 ft-lb* 29' 8" (9.04 m) 7,500 lbs (3,400 kg) CDTpro™
8621 53,100 ft-lb* 21' (6.40 m) 8,600 lbs (3,900 kg) CDTpro™
8630 53,100 ft-lb* 29' 8" (9.04 m) 8,600 lbs (3,900 kg) CDTpro™

Looking for a crane? See our hydraulic and electric Stellar service crane inventory.

Resources

Ready to Build Your TMAX 1?

Tell us about your chassis, crane and accessory needs, and our team will help you configure a Stellar mechanic truck that fits your operation.
