2026 Peterbilt 537
Fuel & Lube Mechanic Truck/ Fuel & Lube Body / Enclosed Reel Cabinet
0 recently viewed this vehicle
0 recently saved this vehicle
888-321-9546
Contact Us
About This Peterbilt

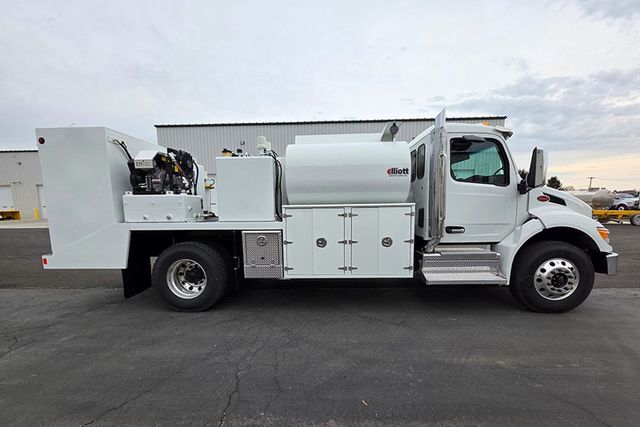

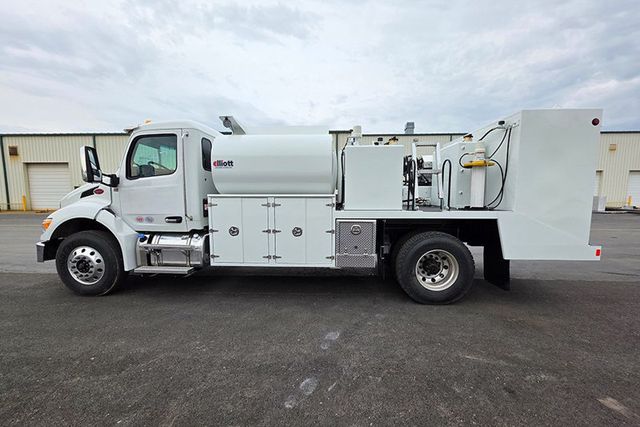

2026 Peterbilt 537 Fuel & Lube Mechanic Truck
| Condition | New |
| Model Code | |
| Engine | |
| Transmission | Automatic |
| Drivetrain | Not Specified |
| Exterior Color | White |
| Interior | |
| Stock # | 9850-IN BUILD |
| VIN # | 9850 |
| Warranty |
Vehicle Overview
Elliott Platform Body- (168) inches long (96) inches wide
- (0.1644) inch steel floor with oil resistant non-slip flooring
- Full width, formed steel crossmembers on (12-16) inch centers
- Full length, (8) inch x (3) inch rectangular steel tubing
- Gussets located at each crossmember and long sill contact point
- Side rails full length (4) inch x (2) inch rectangular steel tubing
- Formed steel construction with integral drip ledge

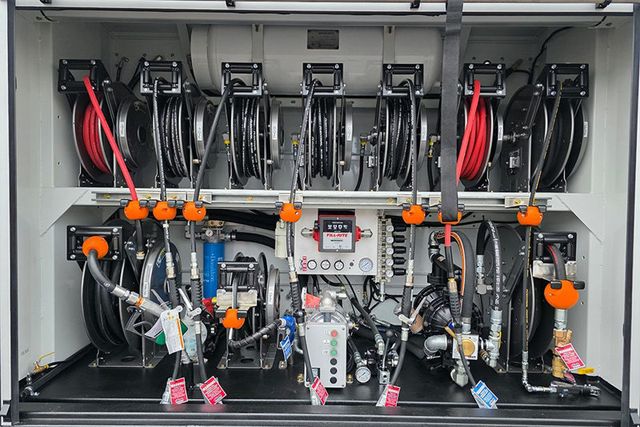

- Reel mounting; Heavy duty, multi-level, with sloped bottom drip tray, and drain plug

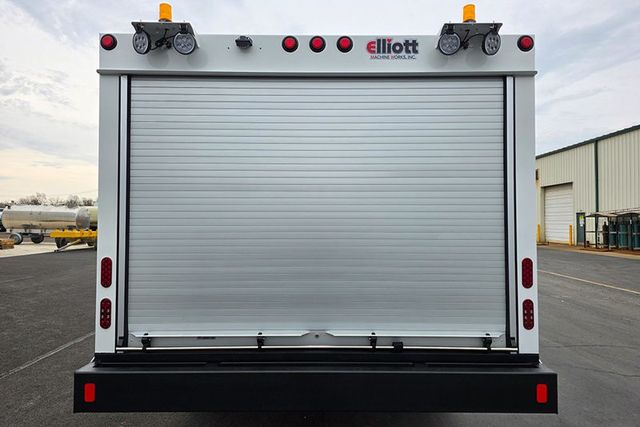

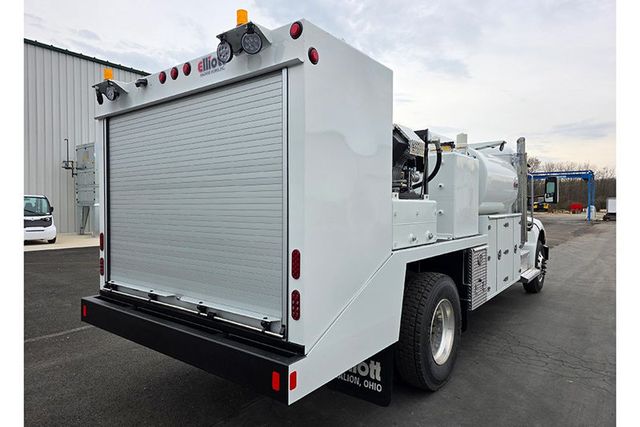

- Rear access; Aluminum, shutter eye, overhead roll-up door with counterbalance spring
- Interior lighting; (12) VDC LED strip lights installed in hose reel area
Fuel Tank - Modified Elliptical Design
- Large radii shell with dished and flanged heads
- Tank is built to DOT-406 specifications, but not certified
- (1000) U.S. gallons, single compartment
- (0.1644) inch high strength low alloy tank heads
- (0.1644) inch high strength low alloy baffle(s)
- (0.1644) inch high strength low alloy bulk heads
- (0.1644) inch high strength low alloy tank shell

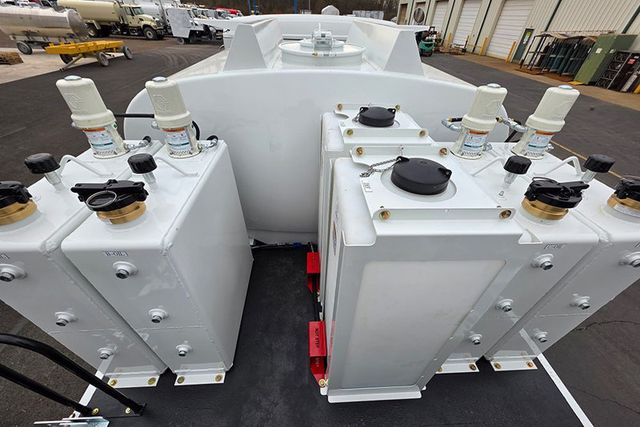

- (1) each, (120) U.S. gallon used oil tank
- (4) each, (60) U.S. gallon oil tanks
- (1) each, (55) U.S. gallon "A/F" tank - poly construction
- (1) each, (55) U.S. gallon "DEF" tank - poly construction
- (1) each, drum nest and hold down kit for a (120) lb. commercial drum
- Large radius formed corners to reduce stress concentrations. Tank corners are "double wall" construction
- Material; High strength low alloy formed steel for petroleum products. Poly construction with steel frame for anti-freeze
- Mounting; Structural angles
- Interior cross baffle
- Fill port; (4.00) inch nominal diameter, non-vented, lockable fill lid
- Vent; (10) micron atmospheric vent on oil tanks
- (3) liquid level sight eyes each tank. (None in fuel or poly tanks)
Engine: Paccar PX-9
Trans: Allison 3500 RDS-P, 6 Speed
HP: 330
GVWR: 33,000 lbs.
Front Axle: 12.000 lbs.
Rear Axle: 21,000 lbs.
Wheelbase: 206"
CA: 138.5"
Ratio: 5.38 Rear Axle
Tires: 295/75R22.5
Financing Information
Contact us today at 888-321-9546 for more information, or fill out our Online Credit Application to begin the pre-approval process today.
Payment Calculator
Estimated Monthly Payment:
$0.00
Warranty Information
Contact Us at 888-321-9546
Texas Truck Center
10555 Cypress Creek Parkway
Houston, TX 77070
View Map & Get Directions
Call Us About This Vehicle: 888-321-9546
888-321-9546| Monday: | 8 a.m. - 5:00 p.m. |
| Tuesday: | 8 a.m. - 5:00 p.m. |
| Wednesday: | 8 a.m. - 5:00 p.m. |
| Thursday: | 8 a.m. - 5:00 p.m. |
| Friday: | 8 a.m. -5:00 p.m. |
| Saturday: | Closed |
| Sunday: | Closed |
Ext / Int Color
- White with Interior
Luxury Features
- Air Conditioning
- Cruise Control
- Tilt Steering Wheel
Power Equipment
- Power Locks
- Power Steering
- Power Windows
Safety Features
- Anti-Lock Brakes
- Driver's Air Bag
- Passenger Air Bag
Trans/Axles
- Drive Axles: Single
- Suspension: Spring
Other
- Fuel Truck - Lube Truck
Interior
- Clock
- Tachometer
Audio / Video
- AM/FM
- Factory System
